A PLC or DCS command tells an actuator to move; it does not confirm that the control valve has reached the required position. Mechanical obstruction, loss of actuator force, incorrect travel stops or a disconnected coupling can leave the valve short of fully open or fully closed while the original command remains unchanged.
A control valve limit switch detects the actual position of the valve stem or actuator shaft at a preset travel point. It then sends a discrete electrical status signal that the control system can use for indication, alarms, sequence permissives or interlocks. The surrounding control circuit decides what action follows; the limit switch itself normally reports position rather than controlling valve travel.
Correct selection depends on actuator motion, required indication points, switch technology, control-system input, environmental protection, hazardous-area approval and the method used to set the open and closed positions. These requirements also determine whether the valve package needs a limit switch, a positioner or both devices for separate feedback and control duties.
What Is a Control Valve Limit Switch?
A control valve limit switch reports when the valve stem, shaft or actuator mechanism reaches a preset travel point. The resulting electrical signal is discrete, so the PLC or DCS receives a defined state such as open, closed or a specified intermediate position rather than a continuous travel measurement.
Most automated valve assemblies use separate indication points for fully open and fully closed positions. Additional switches may be fitted when the control sequence needs another proof point, such as a partial-stroke position. A local beacon or mechanical indicator may show the same position at the actuator, while the electrical contacts or sensors provide remote status.
The control system can use this status as a sequence permissive, alarm input, pump-start condition, routing confirmation or shutdown verification. For example, the next process step may be blocked until the open switch confirms that the valve has completed its commanded movement.
A closed indication proves only that the monitored mechanism reached its adjusted switch point. It does not confirm seat leakage performance, tight shut-off or zero process flow. Those conditions require separate valve testing or process measurement.

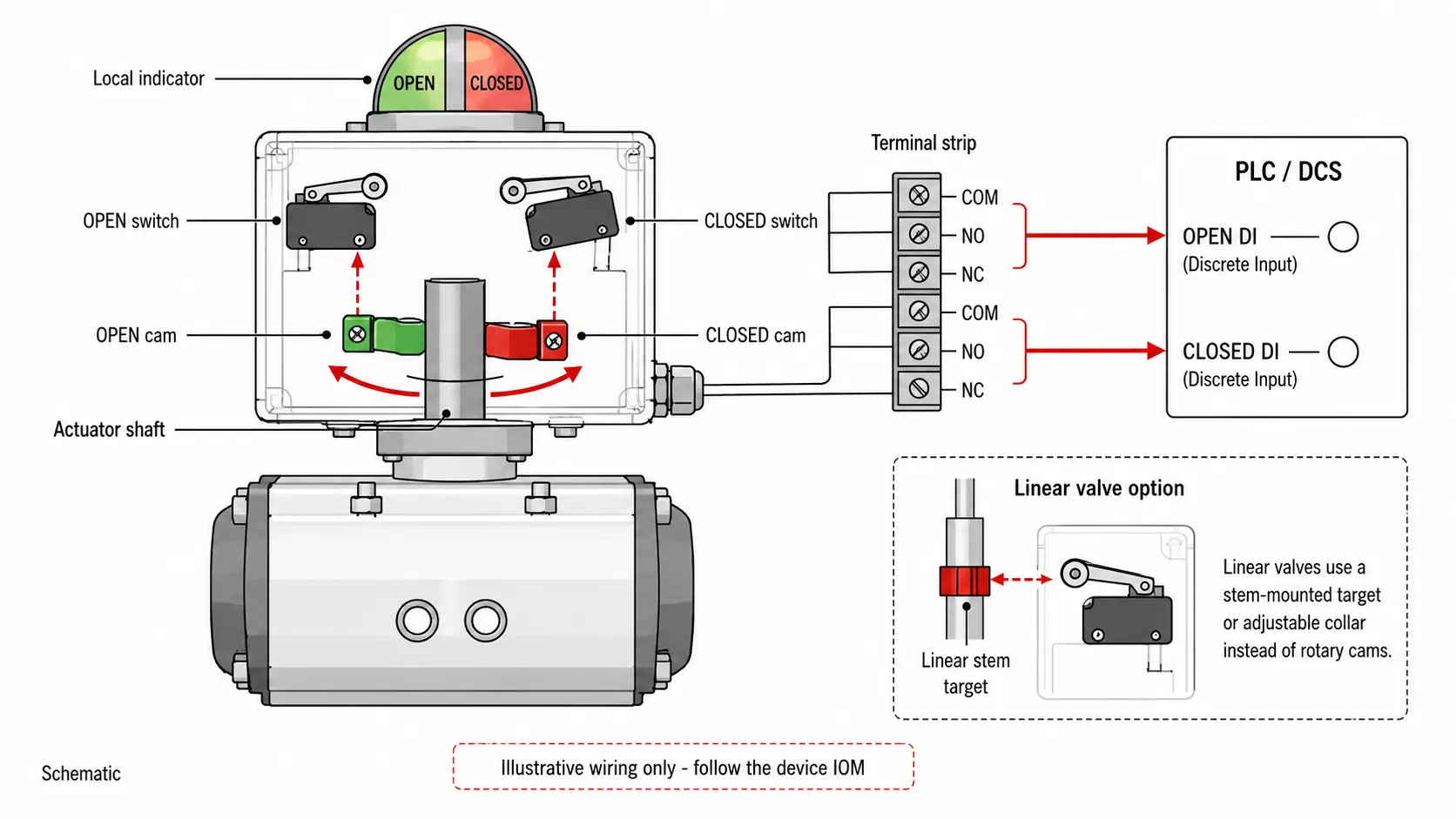

How Does a Valve Limit Switch Work?
Valve movement is transferred to a cam, collar, target or coupling connected to the actuator shaft or valve stem. When that mechanism reaches its adjusted position, it changes the state of a mechanical contact or electronic sensor. The resulting signal passes through the switch-box terminals to a PLC, DCS, relay or other monitoring circuit.

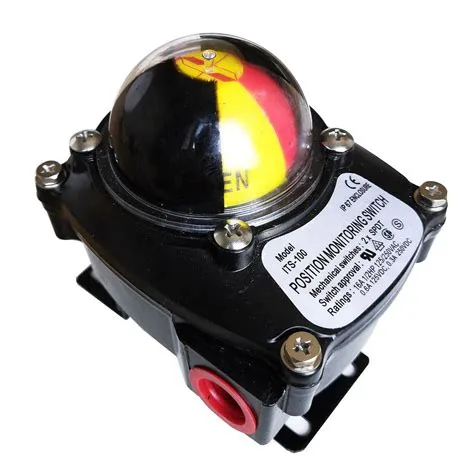

Rotary actuator limit switch boxes

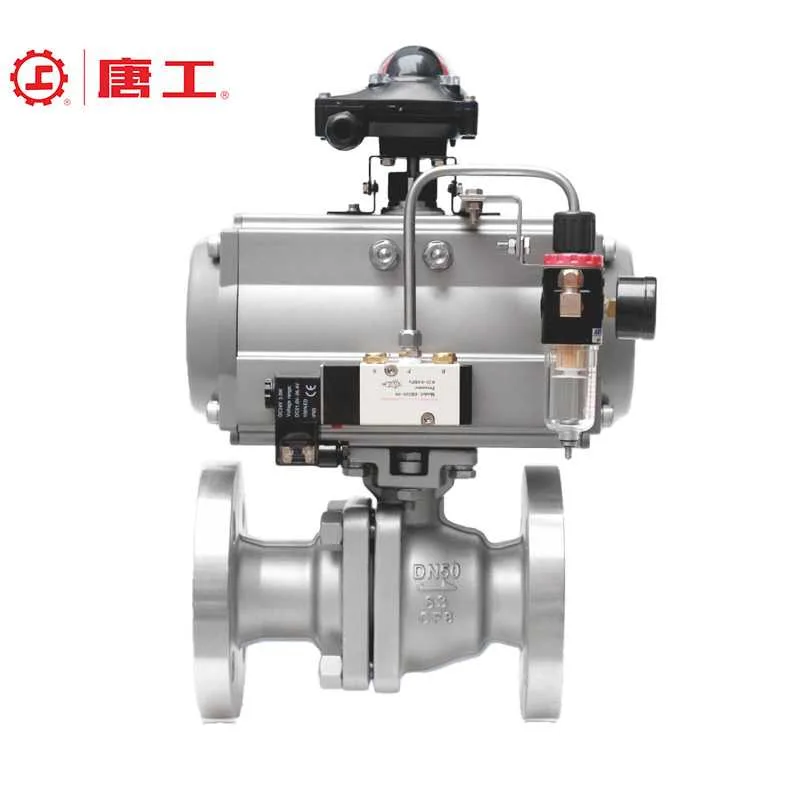

Quarter-turn ball, butterfly and plug valve assemblies commonly use a switch box mounted above the pneumatic or electric actuator. The box shaft rotates with the actuator output, and separate adjustable cams operate the open and closed switches at their assigned travel points.
Each cam can normally be set independently. One switch changes state when the actuator reaches the closed position, while the other operates near the open position. A mechanical beacon on the cover may rotate with the same shaft to provide local indication, but its colours and orientation must agree with the actual valve position.
Linear valve and actuator arrangements
Linear control valves may use a bracket-mounted switch operated by an adjustable collar, lever or sensing target attached to the valve stem or actuator linkage. The target moves vertically with valve travel and activates the selected switch when it reaches the required point. This arrangement must allow the complete stroke without the bracket, target or switch arm restricting movement.
How the status reaches the control system
The switch state becomes a discrete input that the control logic can compare with the original valve command. If an open command is present but the open indication does not arrive within the permitted travel time, the system may generate an alarm, block the next sequence or initiate another programmed response. The action depends on the PLC or DCS logic rather than on the limit switch alone.
Types of Control Valve Limit Switches
Switch technology should be selected from the required electrical interface, operating frequency, contact load, ambient conditions and hazardous-area requirements. Mechanical contacts remain common, but non-contact sensors may be preferable where high cycling, vibration or mechanical wear is a concern.
| Switch type | Operating method | Useful characteristics | Points to verify |
|---|---|---|---|
| Mechanical microswitch | A cam, lever or collar operates a snap-action contact, commonly SPDT | Simple dry-contact interface and clear switching action | Contact rating, mechanical life, cycle rate and suitability for low-current signals |
| Inductive proximity sensor | A metal target changes the sensor’s electromagnetic field without physical contact | No contact wear and suitable for frequent operation | Supply voltage, output format, sensing gap, target material and compatible input device |
| NAMUR proximity sensor | A two-wire sensor changes current according to target position | Low-energy signalling and availability in intrinsically safe arrangements | Matching switch amplifier, barrier, loop parameters and hazardous-area documentation |
| Magnetic reed switch | A moving magnet operates contacts sealed inside a glass capsule | Compact construction and no external mechanical contact with the target | Contact load, magnet alignment, vibration and nearby magnetic influence |
| Solid-state switch | Electronic components change the output state without mechanical contacts | High cycle capability and optional LED or diagnostic indication | Polarity, leakage current, voltage drop, output type and temperature limit |
A NAMUR sensor signal and a NAMUR-style actuator mounting interface describe different features. The electrical sensor still requires a compatible amplifier or barrier, while the mechanical mounting arrangement determines how the switch box couples to the actuator.
External, integrated and stem-mounted arrangements
An external switch box is common on quarter-turn pneumatic actuators because it provides accessible cams, terminals and local indication. Electric actuators may contain internal travel switches that stop motor movement, plus separate auxiliary contacts for remote status. The internal motor-control switch should not be assumed to provide an available PLC feedback contact unless the actuator documentation confirms it.
Linear valves may use switches mounted beside the stem or actuator linkage. The final arrangement should be reviewed as part of the complete control valve and actuator package, including mounting space, full travel, electrical interface and required indication points.
How to Wire a Valve Limit Switch to a PLC or DCS
Wiring should begin with the diagram supplied for the exact switch box, sensor and control-system input. Terminal numbers, contact states and sensor outputs vary between models, so the words open and closed on a position indicator cannot be used as a substitute for the electrical drawing.
Mechanical dry-contact terminals
A mechanical SPDT switch commonly provides COM, NO and NC terminals. These labels describe the electrical contact state when the switch mechanism is not actuated. Cam position determines whether the mechanism is actuated at the valve’s open or closed travel point.
| Terminal | State when the switch is not actuated | Wiring role |
|---|---|---|
| COM | Common connection | Shared moving contact connected to either NO or NC |
| NO | Open from COM | Closes to COM when the switch is actuated |
| NC | Closed to COM | Opens from COM when the switch is actuated |
A box with two SPDT switches normally provides separate contact sets for open and closed indication. The PLC or DCS input circuit supplies or senses the required control voltage through these contacts. The selected NO or NC path should match the plant’s status logic and any requirement to detect a broken wire or loss of power.
Powered proximity and solid-state outputs
Proximity and solid-state switches may use two-wire, three-wire or four-wire connections rather than voltage-free contacts. The input card must match the sensor’s supply voltage, polarity and output type, including PNP, NPN or NAMUR operation where applicable. Leakage current and on-state voltage drop must also remain within the PLC or DCS input limits.
A NAMUR proximity sensor normally connects through a compatible switch amplifier or intrinsic-safety barrier. It should not be treated as an ordinary dry contact or connected directly to an unmatched digital input.
Checks before energising the circuit
The switch voltage and current ratings must suit the actual AC or DC load and its resistive or inductive characteristics. A contact rated for a PLC input may be unsuitable for directly switching a solenoid coil, motor contactor or other inductive device. An interposing relay or suitable suppression device may be required by the approved circuit design.
Power must be isolated before the enclosure is opened or conductors are terminated. Cable glands, conduit seals, earth connections and unused-entry plugs must preserve the specified enclosure and hazardous-area protection. Intrinsically safe or explosion-protected installations also require the approved control drawing, barriers, cable parameters and local installation practices for the selected equipment.
Environmental and Hazardous-Area Ratings
A valve limit switch box must be suitable for the conditions around the actuator, not only the process fluid inside the valve. Rain, washdown, dust, salt exposure, corrosive vapour, vibration, ambient temperature and hazardous gases or dusts can affect the enclosure, terminals, sensors and cable entries.
What an IP rating covers
IEC 60529 classifies the protection provided by an electrical enclosure using the IP Code. The first numeral relates to access and solid-object ingress, while the second relates to water ingress under defined test conditions.
An IP rating does not by itself confirm corrosion resistance, chemical compatibility or suitability for a hazardous location. The selected cable glands, conduit fittings and unused-entry plugs must also preserve the required protection after installation.
Why NEMA Type and IP are not interchangeable
A NEMA Type designation considers characteristics beyond the solid-object and water protection covered by an IP rating. Depending on the Type, these may include construction details and resistance to conditions such as icing, corrosion or oil.
The NEMA enclosure guidance states that an IP degree cannot be treated as equivalent to a NEMA Type designation. A buyer requiring NEMA 4X, IP67 or another rating should specify the required designation directly and verify it on the selected product documentation.
Hazardous-area approval is a separate check
A weather-resistant enclosure is not automatically explosion-protected or intrinsically safe. Hazardous-area selection must match the plant classification system, gas or dust group, Zone or Division, equipment protection method, temperature class and permitted ambient-temperature range.
The approval applies to a particular switch-box configuration, sensor, enclosure and entry arrangement. Replacing a sensor, drilling another cable entry or fitting an unapproved gland can invalidate the documented protection. The equipment nameplate, certificate and control drawing should therefore be checked against the project specification before installation.
Enclosure material and installation condition
Painted aluminium may suit many general industrial locations, while stainless steel or another corrosion-resistant construction may be required for offshore, chemical or frequent-washdown service. Material choice should also cover fasteners, shaft, mounting bracket, cable glands and indicator housing rather than the main enclosure alone.
The published enclosure rating assumes that the cover, gasket, shaft seals, conduit entries and plugs are correctly assembled. A damaged seal, loose cover or shipping plug left in an outdoor cable entry can allow moisture into an otherwise suitable switch box.
Mounting and Open/Closed Cam Adjustment
The valve and actuator must reach their correct mechanical end positions before the limit-switch cams are adjusted. Actuator travel stops determine movement; the cams only determine when the electrical contacts or sensors report that movement.
Follow the switch-box and actuator installation manuals because cam orientation, spring loading, locking method and contact state vary by model. Work in a hazardous area may also require isolation, gas testing, a permit and restrictions on opening an energised enclosure.
- Isolate the equipment. Place the process and actuator in the required safe condition. Disconnect electrical power before opening the switch enclosure, unless an approved procedure and equipment protection method explicitly allow otherwise.
- Check the mounting and coupling. Confirm that the bracket is secure, the switch-box shaft is correctly engaged with the actuator and the assembly can follow the complete stroke without binding. Verify the actual valve open and closed directions from the valve and actuator arrangement.
- Set the mechanical travel first. Move the actuator to the true closed position using the approved manual or powered method. Correct the actuator stops, coupling or valve travel before touching the switch cam if the valve does not reach its required mechanical position.
- Adjust the closed-position cam. Move the cam according to the manufacturer’s instructions until the assigned switch changes state at the required closed travel point. Verify the result with a continuity tester on an isolated dry contact or with the approved control-system indication.
- Adjust the open-position cam. Move the actuator to its true open position and set the separate open cam until its assigned switch changes state. Do not assume that the upper or lower cam always represents the same valve position across different switch-box designs.
- Check both directions of travel. Cycle the actuator from closed to open and back again several times. Confirm that each signal changes consistently, the two indications are not active together unless the control philosophy permits it, and the local beacon agrees with the actual valve orientation.
- Restore the enclosure protection. Inspect the gasket and sealing surfaces, seat the local indicator correctly, tighten the cover as specified and confirm that every cable entry has an approved gland or plug. Restore power and complete a final command, travel and feedback test from the control system.
Linear stem switch adjustment
A linear-valve assembly may use an adjustable collar, flag or target instead of rotary cams. Move the valve to the required travel point, position the target so it operates the assigned switch, and retain the clearance specified by the manufacturer. The target and bracket must remain clear of the stem, actuator linkage and packing components throughout the full stroke.
What the final test should prove
The completed test should confirm the full chain from control command to actuator movement, actual valve travel and returned status. A switch that changes state correctly during hand adjustment may still give an incorrect plant indication if the field wiring, PLC input assignment or open/closed logic is reversed.

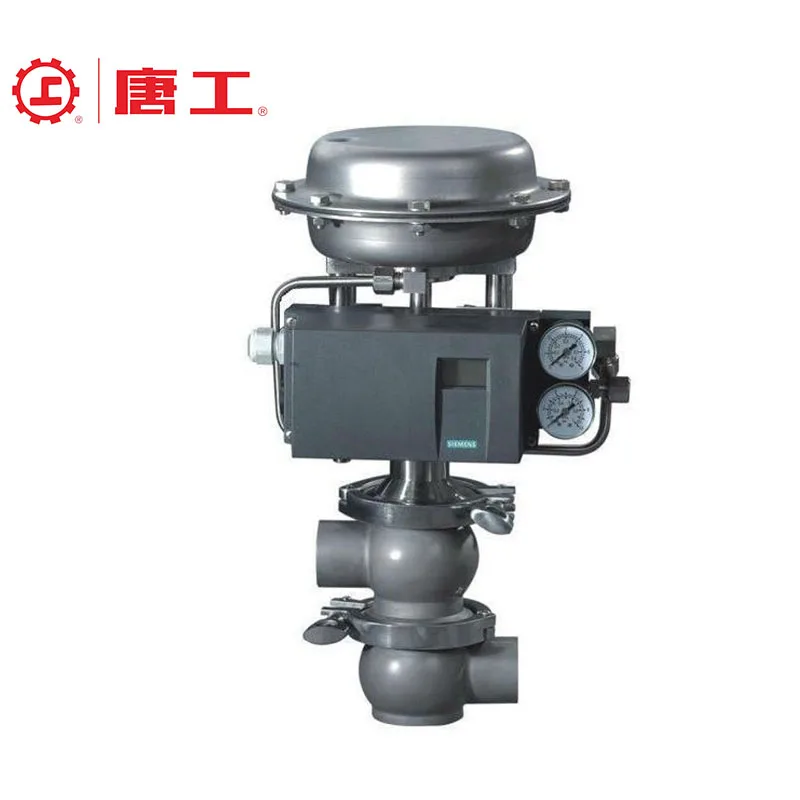

Valve Positioner vs Limit Switch
A limit switch confirms that the valve has reached a preset position. A valve positioner compares the commanded travel with the actual stem or shaft position and adjusts the actuator output to reduce the difference while the valve is moving.
| Comparison point | Limit switch | Valve positioner |
|---|---|---|
| Primary function | Reports one or more preset valve positions | Controls actuator output to achieve commanded valve travel |
| Typical input | Mechanical movement or a sensing target | Pneumatic, 4-20 mA or digital control command, depending on type |
| Typical output | Discrete contact or sensor state sent to the control system | Pneumatic pressure or another actuator-driving output |
| Position information | Open, closed or another adjusted proof point | Uses internal travel feedback for positioning; external retransmission depends on model and options |
| Common duty | On/off indication, sequencing, alarms and interlocks | Modulating flow, pressure, temperature or level control |
A 4-20 mA signal connected to a positioner commonly represents the requested valve travel. It should not automatically be described as an external position-feedback output. Position retransmission, diagnostic data and discrete limit signals depend on the positioner model, installed options and communication method.
Can a control valve use both?
A modulating control valve may use a valve positioner to control intermediate travel and separate limit switches to prove that the valve reaches a fully open, fully closed or partial-stroke test position. Some digital positioners include optional limit-switch or position-transmitter functions, while other assemblies use a separate switch box.
If the control system must block, supply or vent actuator air during a trip, that pneumatic switching duty normally belongs to an SOV in the control valve air circuit. A limit-switch signal may initiate the programmed response, but it does not redirect the actuator air by itself.
Common Valve Limit Switch Faults and Checks
A missing or incorrect position signal does not prove that the limit switch has failed. The fault may be in the valve travel, actuator coupling, cam adjustment, sensor, field cable, PLC or DCS input, or programmed status logic.
| Observed symptom | Likely area to inspect | Verification |
|---|---|---|
| Valve moves but no open or closed signal appears | Cam or target position, sensor gap, supply, contact terminals, cable or input channel | Confirm actual valve travel, test the switch state locally, then trace the signal to the control-system input |
| Signal changes before the valve reaches end travel | Cam adjustment, loose target, incorrect actuator stop or coupling movement | Check the true mechanical end position before resetting the assigned switch point |
| Open and closed indications are reversed | Cam assignment, NO/NC selection, terminal wiring, input tags or local indicator orientation | Move the valve to a visually confirmed position and compare the local contact state with the PLC or DCS tag |
| Both position signals remain active | Overlapping cam settings, incorrect contact selection, shorted conductors or logic inversion | Test each switch independently and confirm whether signal overlap is permitted by the approved control philosophy |
| Signal changes intermittently during vibration or cycling | Loose terminals, cam movement, worn contacts, unstable sensor gap, damaged cable or supply fluctuation | Inspect the mechanical retention and wiring, then monitor the local output while cycling the actuator |
| Corrosion, condensation or water is found inside the box | Cover gasket, shaft seal, cable gland, conduit drainage, unused entry or enclosure material | Locate the ingress path and replace damaged components without reducing the documented enclosure protection |
| Closed status is present but process flow continues | Coupling failure, incomplete valve travel, trim obstruction, seat damage or normal allowable leakage | Verify the valve member’s actual position and perform the required shut-off or leakage assessment |
What happens when a limit switch goes bad?
A failed switch or sensor may leave the status unchanged, generate an intermittent signal or report the wrong position. The control system may then hold a sequence, issue an alarm or act on incorrect valve status, depending on the programmed logic. The process response is therefore determined by the interlock design, not by the switch failure alone.
Fault isolation should follow the signal chain in order: actual valve travel, actuator coupling, cam or target, local switch output, field wiring, input card and control logic. If the returned position is correct but the valve still responds slowly, hunts or fails to control the process, continue with the broader control valve troubleshooting checks.
What to Specify When Buying a Valve Limit Switch
Specification should start with the actuator motion and control-system input. A switch box that fits a quarter-turn actuator may still be unsuitable if its sensor output, enclosure, contact rating or hazardous-area approval does not match the project.
- Valve and actuator movement: State whether the assembly is rotary or linear, the required rotation angle or stroke, the actual open and closed directions, and the actuator fail position.
- Mounting interface: Provide the actuator model, shaft or stem arrangement, mounting pattern, bracket height and coupling dimensions. Confirm whether the switch is external, integrated into the actuator or mounted beside a linear stem.
- Required indication points: Define whether the control system needs fully open, fully closed, both positions or an additional partial-stroke point. State whether local visual indication is also required.
- Switch technology: Select mechanical microswitches, inductive proximity sensors, NAMUR sensors, magnetic reed switches or another approved solid-state design according to cycle rate and electrical interface.
- Electrical output: Specify dry contact, SPDT or DPDT arrangement, PNP, NPN, NAMUR or another output type. Include the supply voltage, PLC or DCS input specification, contact load and required de-energised contact state.
- Cable and terminal arrangement: Confirm the number and thread of cable or conduit entries, approved gland type, terminal capacity, earthing provision and whether the box must also provide terminals for a nearby solenoid valve.
- Environmental protection: State the required IP Code or NEMA Type directly, together with indoor or outdoor location, washdown, dust, vibration, corrosion risk and ambient-temperature range.
- Hazardous-area requirements: Provide the applicable Zone or Division, gas or dust group, temperature class, protection method and certificate requirements. Include the barrier or switch-amplifier data when a NAMUR or intrinsically safe circuit is used.
- Enclosure construction: Confirm aluminium, coated aluminium, stainless steel or another required material. Check the cover, fasteners, shaft, bracket, indicator and cable fittings rather than specifying only the main housing material.
- Documentation and testing: Request the product datasheet, wiring diagram, installation manual and applicable approval documents. Define whether the supplier must mount the box, adjust the cams and verify open and closed feedback during a complete actuator stroke test.
Supplying these details with the valve and actuator specification reduces the risk of receiving a switch box that fits mechanically but cannot connect to the intended control input or retain its required environmental protection after installation.
Confirm the Complete Valve Feedback Chain
A limit switch is correctly specified only when its signal represents the required mechanical valve position and matches the control-system input. Final commissioning should prove that the command, actuator movement, valve travel, local indicator and returned open or closed status agree throughout repeated operating cycles.
For a limit switch supplied with a new valve and actuator package, provide the actuator model and motion, required indication points, PLC or DCS input, electrical load, mounting details, ambient conditions and hazardous-area classification. MacoTango can use these data to review the control valve feedback package before the assembly and documentation requirements are finalised.
