A control valve trim that suppresses cavitation in liquid service is not automatically suitable for reducing aerodynamic noise in gas or steam service. Cavitation begins when local liquid pressure falls below its vapour pressure and then recovers; gas and steam noise is driven mainly by high-velocity compressible jets and turbulence. The trim must control a different physical mechanism in each case.
The choice of control valve trim for cavitation and noise reduction starts with the fluid phase, inlet and outlet pressure, temperature, vapour pressure, minimum-to-maximum flow and allowable sound level. Multi-stage cages, stacked-disc paths, perforated cages, rotary attenuators and hardened trim address different combinations of pressure recovery, jet velocity, solids handling and erosion tolerance. A workable shortlist must also preserve the required Cv and rangeability without creating plugging, actuator or outlet-velocity problems.
Cavitation Trim and Low-Noise Trim Solve Different Problems
A liquid control valve can cavitate even when its downstream pressure appears acceptable, because the lowest static pressure occurs inside the throttling region. A useful diagnosis starts with the fluid phase and the pressure profile, not the sound alone. Rattling, vibration or high sound pressure may justify a wider check of the control valve troubleshooting resources, but the trim decision depends on how the flow generates that noise.
Cavitation requires a pressure drop followed by recovery
In liquid service, pressure falls as the fluid accelerates through the restricted trim area. If the local pressure drops below the liquid’s vapour pressure, vapour bubbles form. When pressure then recovers above vapour pressure, the bubbles collapse and can produce noise, vibration and local pitting on the plug, cage, seat or valve body.
An anti-cavitation trim usually divides the total pressure drop into smaller stages so that each stage has a less severe pressure reduction. The design may aim to prevent bubble formation, or to control where collapse occurs when complete prevention is impractical. Hard-facing can slow erosion at exposed surfaces, but it does not change the pressure condition that creates cavitation.
Flashing continues downstream
If pressure remains at or below vapour pressure after the valve, the bubbles do not collapse as they would in cavitation. The two-phase mixture continues into the outlet and downstream pipe. An anti-cavitation trim cannot remove this flashing condition by itself; selection shifts towards controlling outlet velocity, directing the two-phase flow and choosing materials and geometry that can tolerate erosion. The pressure behaviour is covered in more detail in flashing and cavitation in control valves.
Gas and steam noise comes from compressible flow
Gas and steam do not generate cavitation bubbles. Their control valve noise is driven mainly by turbulent mixing, rapid expansion and high-velocity jets, especially when the flow becomes choked. Low-noise trim divides the flow into smaller jets, manages their interaction and may stage the pressure reduction to reduce acoustic energy at the source. High pressure ratios can also require an expanded outlet, diffuser or downstream silencer because trim treatment alone may not bring valve outlet velocity and pipe noise within the required limit.
A trim labelled for low-noise gas service is therefore not automatically suitable for a cavitating liquid, particularly when the liquid carries scale or suspended solids that can block small passages. The required trim architecture follows the fluid behaviour first; material hardness and product naming come later.
What the Trim Must Change Inside the Valve
A severe pressure drop becomes damaging when too much pressure energy is converted into velocity at one restriction. A conventional single-stage trim may be adequate at moderate conditions, but a high liquid pressure drop can pull local pressure below vapour pressure, while a high gas or steam pressure ratio can produce choked, high-energy jets. Severe-service trim changes where that energy is released and how the jets leave the throttling area.
Pressure staging divides the total valve pressure drop across two or more restrictions. In liquid service, the aim is to keep the local pressure at each stage above vapour pressure where practical, or to control the collapse region when some cavitation cannot be avoided. In compressible service, a lower pressure ratio across each stage limits the severity of expansion and reduces the acoustic energy generated by a single large pressure drop.
Flow division performs a different task. A perforated cage, drilled-hole cage or stacked-disc path splits the flow into many smaller streams instead of allowing one large jet to form. Hole size, spacing and direction affect whether those jets remain separated, collide inside the trim or combine near the outlet. Poor jet control can move the high-velocity region rather than remove it.
The final expansion still matters after the fluid leaves the trim. An enlarged valve outlet can reduce exit velocity, while a downstream diffuser or silencer can handle pressure and acoustic energy that the trim cannot absorb within the available body size. These are system treatments rather than trim options, and they must be checked against pipe size, outlet pressure, allowable sound level and downstream equipment.

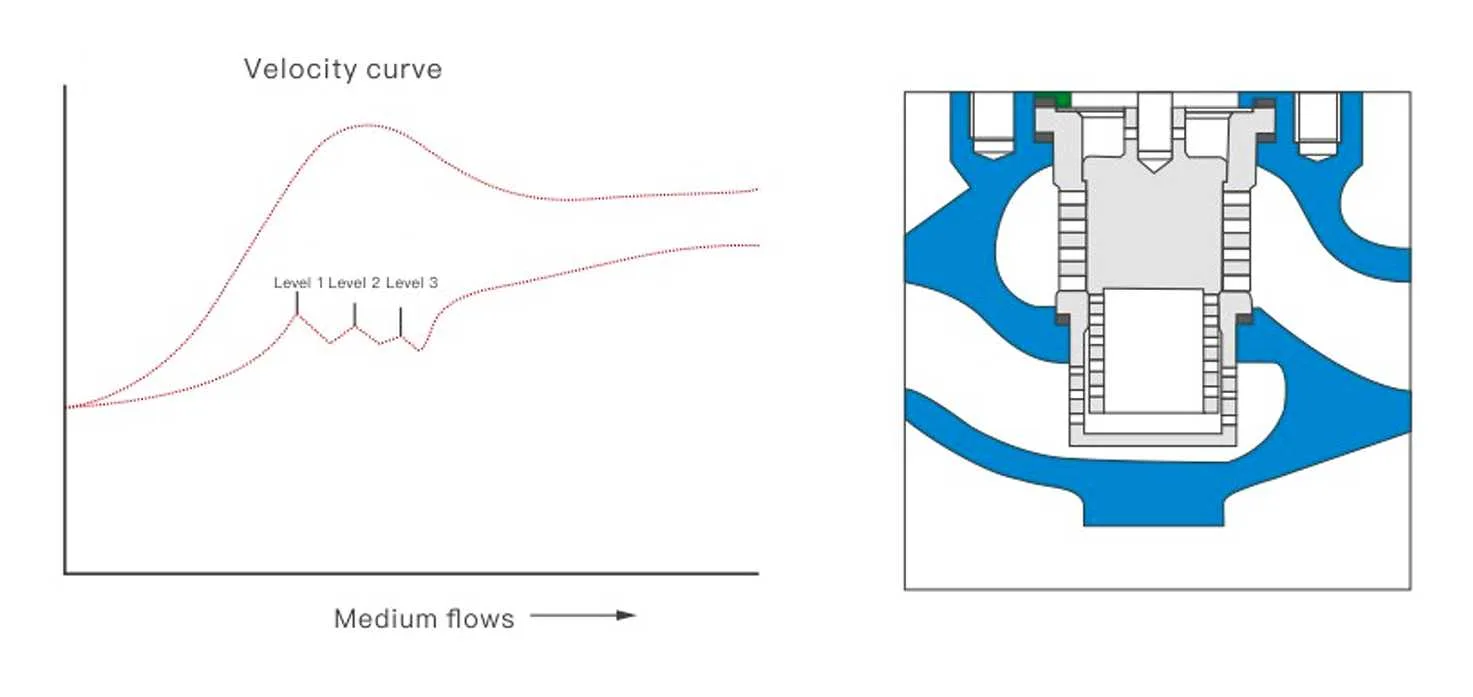

A public top-guided high-pressure control valve structure shows how staged cage restrictions can be packaged inside a globe-style body. The drawing explains the architecture, but it does not establish suitability for a specific duty. Stage count, passage area and outlet treatment still have to satisfy the required Cv, travel range and pressure profile.
Five Trim Options and Where Each Fits
Trim geometry reduces cavitation or flow-generated noise by changing the pressure and velocity profile. Hard material alone changes how quickly exposed surfaces wear; it does not remove the hydraulic or aerodynamic source. The useful comparison is therefore based on what each trim does to the fluid, followed by its capacity, cleanliness and maintenance limits.
Multi-stage cage trim
A multi-stage cage places two or more restrictions in series so the valve does not take the full pressure drop at one point. This arrangement can keep local liquid pressure above vapour pressure through more of the flow path, or reduce the pressure ratio handled by each stage in gas and steam service. It is a strong candidate for high-pressure-drop duties with a reasonably clean medium and a predictable operating range.
Stage count cannot be selected from inlet and outlet pressure alone. Each stage needs enough flow area for the required Cv, and the valve must remain controllable at minimum flow. More stages usually mean smaller or more complex passages, which increases sensitivity to scale, welding debris and suspended solids.
Stacked-disc or labyrinth trim
Stacked-disc trim routes the fluid through repeated restrictions and turns formed between machined discs. The long path provides many small pressure reductions and close control of jet direction, making this design useful when a severe liquid pressure drop or compressible-flow pressure ratio needs more staging than a conventional cage can provide.
The same narrow paths that provide effective energy control can trap particles or deposits. Fluid cleanliness, passage size, minimum flow and access for cleaning matter as much as the nominal pressure rating. This trim is usually a poor first choice for slurry, crystallising liquids or service with uncertain debris control unless the passage design has been qualified for that medium.
Multi-hole or perforated cage trim
A perforated cage divides one large flow stream into many smaller jets. In gas and steam service, the hole pattern can reduce individual jet size and control how the jets interact before they reach the valve outlet. In liquid service, a porous cage may reduce local velocity and distribute the flow, but a single perforated stage is not a substitute for true multi-stage pressure reduction when the cavitation risk is severe.
The public porous cage control valve provides a clear example of this architecture. Its suitability still depends on the calculated pressure profile, required flow range and the likelihood of passage blockage.
Rotary attenuator or self-flushing trim
A rotary control valve can use a drilled attenuator, segmented element or shaped flow path to divide the jet while retaining a larger flow passage than many globe-valve severe-service trims. Certain designs use the motion of the ball or plug to sweep the throttling edge, which can help where fibres, scale or suspended particles make a fine stacked-disc path impractical.
Rotary construction does not guarantee self-cleaning or cavitation control. The attenuator position, flow direction, minimum opening and downstream recovery zone must be checked for the specific valve. This approach is often considered when capacity and solids tolerance carry more weight than achieving a large number of pressure-reduction stages.
Hardened or erosion-resistant trim
Hard-facing, hardened stainless steel or other erosion-resistant materials can slow surface loss where bubble collapse, flashing or particle impact cannot be fully avoided. They are damage-tolerance measures rather than noise-control mechanisms. A hardened plug and seat may survive longer than untreated trim while the valve still generates the same cavitation or aerodynamic source.
Material hardness must be balanced against toughness, corrosion resistance, seat leakage requirements and repair method. Hardening is most useful when it supports a suitable flow geometry, or when the process condition makes complete source prevention unrealistic. The broader control valve series can then be reviewed by body style and capacity after the trim mechanism has been shortlisted.
Match the Trim to Liquid, Gas, Steam, Dirty or Flashing Service
The fluid condition should eliminate unsuitable trim families before material grade or valve model is selected. The same pressure drop can produce recoverable liquid cavitation, persistent flashing or compressible-flow noise, and each condition calls for a different control objective.
| Service condition | Physical objective | Trim shortlist | Possible system measure | Main watch-out |
|---|---|---|---|---|
| Recoverable liquid cavitation | Keep local pressure above vapour pressure or control the collapse zone | Multi-stage cage or stacked-disc trim | Increase backpressure or split the pressure drop if practical | Check vapour pressure, minimum opening and fluid cleanliness |
| Gas or steam aerodynamic noise | Reduce jet size, stage expansion and limit outlet velocity | Multi-hole cage, multi-stage cage or stacked-disc trim | Expanded outlet, diffuser or downstream silencer | Check choked flow, outlet Mach number and pipe noise |
| Dirty liquid or suspended solids | Control the damaging jet without creating blockage points | Rotary attenuator or qualified large-passage staged trim | Debris control, flushing access or removable trim | Fine holes and labyrinth paths may plug or erode |
| Flashing or persistent two-phase flow | Control velocity and direct unavoidable erosion | Erosion-resistant trim with a suitable outlet flow path | Larger outlet and protected downstream piping | Anti-cavitation trim cannot stop the phase change by itself |
| Very high pressure ratio or pressure drop | Distribute energy beyond one severe restriction | High-stage cage or multi-path trim for a clean medium | Diffuser, second let-down stage or line-size change | One valve may still leave excessive outlet velocity or noise |
Use the table to narrow the architecture, not to order the trim. Minimum, normal and maximum flow points should be checked separately because the controlling cavitation or noise condition may occur away from the design flow. If the shortlist also changes the complete valve construction, compare the practical differences among single-seat, cage-guided and multi-stage control valves before fixing the body and actuator arrangement.
Where Severe-Service Trim Still Fails
A severe-service trim can pass the design-point calculation and still fail at minimum travel, where the flow is forced through only a small part of its available area. The trim must work across the actual operating envelope, not just at the maximum or normal flow used to size the valve.
Minimum opening can concentrate damage
At low travel, the first active holes or edges may carry most of the pressure drop. Local velocity and jet impingement can then be more severe than an average value for the full trim suggests. A multi-stage design also loses part of its intended staging if later passages receive little flow or if the plug position exposes the stages in an unfavourable sequence.
Check minimum continuous flow, start-up, bypass operation and any period when the valve remains close to the seat. If normal operation keeps an oversized valve near its minimum controllable position, a smaller valve, reduced-capacity trim or split-range arrangement may give better control and distribute wear more predictably.
Fine passages conflict with dirty service
Small drilled holes and labyrinth channels reduce jet size, but they also create places where rust, weld slag, fibres, catalyst particles or crystallised product can collect. Partial blockage changes the flow distribution. The remaining open passages then carry more velocity and may erode faster, while the valve develops less Cv than the sizing calculation assumed.
Nominal particle size is not enough to judge blockage risk. Particle shape, concentration, settling behaviour and whether solids can agglomerate during shutdown also matter. A coarser rotary attenuator or removable large-passage cage may be the better compromise when the cleanest trim geometry would be difficult to keep clean.
More stages can reduce Cv and usable range
Every additional restriction consumes flow area. A high-stage trim may therefore require a larger valve body to pass the required maximum flow. If that larger valve then operates at very low travel during normal production, the apparent cavitation or noise solution can introduce poor control resolution, hunting or rapid wear near the seat.
The sizing review should compare rated Cv, required Cv at minimum, normal and maximum flow, the selected flow characteristic and the usable travel range. Published rangeability is not a guarantee that the installed valve will control well when pipe losses and actuator response are included.
The actuator and outlet can become the next limit
High pressure drop changes plug or shaft forces as well as fluid velocity. The actuator needs enough thrust or torque to move the trim through the full pressure range, hold a stable position and achieve the specified shut-off class. Cage guidance can improve mechanical support, but it does not correct an undersized actuator, excessive packing friction or an unstable positioner setup.
Noise can also remain high after the source has been reduced inside the trim. A small outlet, abrupt expander or thin downstream pipe can leave excessive velocity, vibration or radiated pipe noise. Valve outlet Mach number for compressible service, liquid outlet velocity, reducer geometry, pipe schedule and distance to the first elbow should be reviewed with the trim calculation.
Maintenance access affects long-term performance
Stacked discs, drilled cages and hardened seating surfaces need inspection methods suited to their construction. Deposits hidden inside a multi-path trim may not be visible during a quick seat inspection, and aggressive cleaning can damage small edges or coatings. The maintenance plan should cover trim removal, cleaning limits, spare assemblies and how the flow direction and stage order will be restored during reassembly.
Hardness also has to be considered with corrosion resistance, toughness and repairability. The valve trim materials and applications guide can support that material check, but the final choice still has to match the pressure profile and failure mechanism established for this valve.
Confirm the Selection with Noise and Cavitation Calculations
A trim name cannot replace a calculation based on the fluid, pressure ratio and complete operating range. Two valves with the same body size and nominal pressure drop may need different trim because one handles water close to its vapour pressure while the other handles dry gas approaching choked flow.
For gas and steam service, IEC 60534-8-3 provides the framework for predicting aerodynamic noise from control valves within its scope. For liquid service, IEC 60534-8-4 addresses hydrodynamic noise prediction, including the effects associated with cavitating flow. These methods support different physical models, so a compressible-flow result should not be used as a substitute for a liquid cavitation assessment.
The calculation should cover each credible operating point rather than one average duty. The following inputs change the predicted mechanism, required Cv or acceptable trim geometry:
- fluid phase, composition, density and gas molecular weight or liquid vapour pressure;
- minimum, normal and maximum flow rates with inlet and outlet pressure at each point;
- operating temperature and any start-up or upset temperature that changes fluid properties;
- upstream and downstream pipe size, schedule, reducers and nearby fittings;
- allowable sound pressure level, assessment location and any project noise limit;
- solids, fibres, scale or deposits that restrict minimum passage size; and
- required Cv, flow characteristic, usable travel, shut-off class and actuator action.
The result should show more than a predicted sound level. It should also identify whether the flow is choked, whether local liquid pressure falls below vapour pressure, how much pressure drop each stage carries, and whether outlet velocity remains acceptable. The selected valve body, trim, actuator and downstream piping then need to be checked as one pressure-reduction system.
Before ordering, compare the calculation at minimum, normal and maximum flow with the proposed stage count, passage size, rated Cv and outlet arrangement. MacoTango can review the operating conditions and trim shortlist when the pressure data, fluid properties, flow range, piping information and noise requirement are available.
