Pipeline strainers play a crucial role in fluid handling systems by removing unwanted particles like rust, scale, and welding debris from liquids or gases, thus safeguarding equipment and reducing maintenance. When considering Y Strainer vs Basket Strainer, it’s essential to recognize that Y Strainers offer a compact, versatile design ideal for limited-space installations and low-debris fluids, while Basket Strainers, with their larger filtration areas, efficiently handle higher debris loads and flow rates in demanding applications. Selecting the right strainer type hinges on factors like fluid characteristics, debris concentration, pressure, and ease of maintenance, making an understanding of their differences critical for optimized system performance.

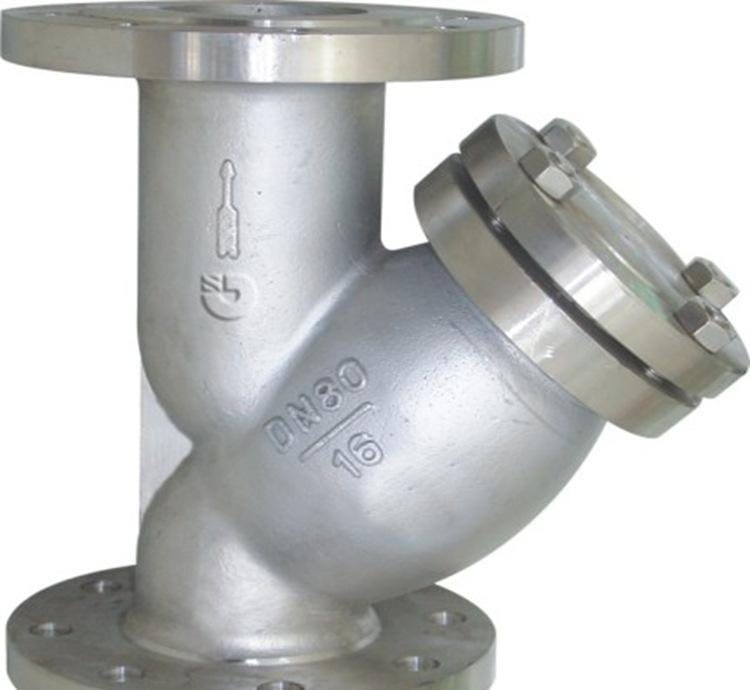

What is a Y Strainer?

A Y Strainer is a mechanical device designed to remove unwanted solids from flowing liquids, gases, or steam in pipelines, thereby protecting downstream equipment such as pumps, valves, and traps from potential damage.

Design & Working Principle

Characterized by its Y-shaped configuration, the Y Strainer consists of a main pipeline and a branch that houses a perforated or mesh straining element. This design allows the strainer to be installed in both horizontal and vertical orientations, providing flexibility in various piping arrangements. As the fluid enters the strainer, it flows through the mesh screen, which captures debris and permits the cleaned fluid to continue downstream.

Key Features

• Compact Size: The Y Strainer’s streamlined design makes it suitable for installations where space is limited. ​

• Simple Installation: Its versatile structure allows for easy integration into existing pipeline systems, accommodating both horizontal and vertical placements. ​

• Cost-Effectiveness: Compared to other strainer types, Y Strainers are generally more affordable, offering a budget-friendly solution for protecting pipeline components.

What is a Basket Strainer?

​A Basket Strainer is a device installed in pipelines to remove unwanted debris from fluids, ensuring the protection and efficiency of downstream equipment such as pumps, valves, and heat exchangers. ​

Design & Working Principle

Basket strainers feature a cylindrical or spherical body housing a removable basket made of perforated metal or mesh. Fluid enters the strainer through the inlet, passes through the basket where debris is captured, and exits through the outlet as a cleaner medium. This design allows for straightforward removal and cleaning of the basket, facilitating maintenance without significant system downtime. ​

Key Features

• Large Filtration Area: The expansive surface of the basket allows for efficient debris collection, reducing the frequency of maintenance.

• Reduced Flow Resistance: The design minimizes pressure drop across the strainer, maintaining system efficiency. ​

• Scalability: Basket strainers are available in various sizes and configurations, including simplex and duplex models, to accommodate different flow rates and application requirements. ​

For a visual understanding of how basket strainers function, you might find this explanatory video helpful:

Source: 3D-knowledge

Key Differences Between Y Strainer vs Basket Strainer

​Understanding the key differences between Y Strainers and Basket Strainers is essential for selecting the appropriate component for your pipeline system.​

Structural Design

• Y Strainer: Features a Y-shaped body with a conical or cylindrical filtering element inside. This design allows for installation in both horizontal and vertical orientations.

• Basket Strainer: Comprises a cylindrical or spherical body with a removable basket inside, typically installed horizontally. ​

Flow Resistance & Application Scenarios

• Y Strainer: Due to a smaller filtration area, Y strainers may have higher flow resistance, making them suitable for applications with low flow rates, limited space, and relatively clean fluids. ​

• Basket Strainer: With a larger filtration area, basket strainers offer reduced flow resistance, ideal for high flow rate systems handling fluids with higher debris content, such as wastewater and industrial fluids. ​

Maintenance & Cleaning

• Y Strainer: Cleaning requires system shutdown to remove and clean the straining element, leading to potential downtime. ​

• Basket Strainer: Designed for easy maintenance, the removable basket allows for quick cleaning or replacement without significant system interruption. ​

Cost Analysis

• Initial Cost: Y strainers are generally more cost-effective due to their compact design and simpler construction.

• Long-Term Savings: Basket strainers, despite a higher initial investment, may offer long-term savings by reducing downtime and maintenance frequency, especially in systems with continuous particle loads.

How to Choose Between Y Strainer vs Basket Strainer

​Selecting between Y Strainer vs Basket Strainer requires a comprehensive evaluation of your system’s specific needs. Here’s a guide to assist in making an informed decision:​

Assess Your System’s Flow Requirements

• Flow Rates: Y Strainers are suitable for systems with lower flow rates due to their compact design, while Basket Strainers are ideal for high-flow applications, offering a larger filtration area and reduced pressure drop. ​

• Debris Load: For systems expecting higher debris loads, Basket Strainers are preferable as they can handle larger volumes of contaminants without frequent maintenance. ​

Evaluate Maintenance Frequency

• Y Strainers: May require more frequent cleaning due to a smaller dirt-holding capacity, potentially leading to increased maintenance intervals. ​

• Basket Strainers: Designed with larger filtration areas, they necessitate less frequent cleaning, making them advantageous for systems where maintenance access is challenging. ​

Budget Considerations

• Initial Investment: Y Strainers are generally more cost-effective upfront, making them suitable for budget-conscious projects. ​

• Long-Term Costs: Basket Strainers, while having a higher initial cost, may offer savings over time due to reduced maintenance and downtime. ​

Industry-Specific Needs

• Chemical Plants: Basket Strainers are often preferred for their ability to handle high flow rates and significant debris loads, ensuring the protection of sensitive equipment. ​

• HVAC Systems: Y Strainers are commonly used to remove debris from water or air systems, protecting pumps and control valves. ​

• Wastewater Treatment: Basket Strainers are effective in filtering larger particles, making them suitable for wastewater applications where debris load is substantial.

FAQ

1.Which is better for high-pressure systems?

Y Strainers are particularly adept in high-pressure environments, capable of handling pressures up to 6000 psi. Their robust design makes them suitable for applications involving steam, gases, or liquids under high pressure. ​

2.Can a Y Strainer handle wastewater applications?

While Y Strainers are versatile and can be used in various applications, they are typically intended for systems where small amounts of solid particulate are expected and where clean-out will be infrequent. In wastewater applications, where larger debris loads are common, Basket Strainers might be more appropriate due to their larger dirt-holding capacity and ease of maintenance. ​

3.How often do Basket Strainers require cleaning?

The cleaning frequency for Basket Strainers depends on the specific application and the amount of debris in the system. However, due to their larger filtration area, they generally require less frequent cleaning compared to Y Strainers. Regular maintenance schedules should be established based on system monitoring to ensure optimal performance. ​

Conclusion

In summary, choosing between a Y Strainer and a Basket Strainer depends significantly on your system’s specific needs. Y Strainers offer advantages in compactness, affordability, and suitability for low-flow, clean-fluid systems, but they may require more frequent maintenance and experience higher flow resistance. Basket Strainers, conversely, excel in handling higher flow rates, significant debris loads, and offer easier, quicker maintenance, though at a higher initial cost. Ultimately, if your operational priority is minimal downtime and easy maintenance in high-flow, debris-intensive environments, a Basket Strainer is recommended. Conversely, for space-limited installations with clean fluids and budget constraints, the Y Strainer is a more practical solution.
